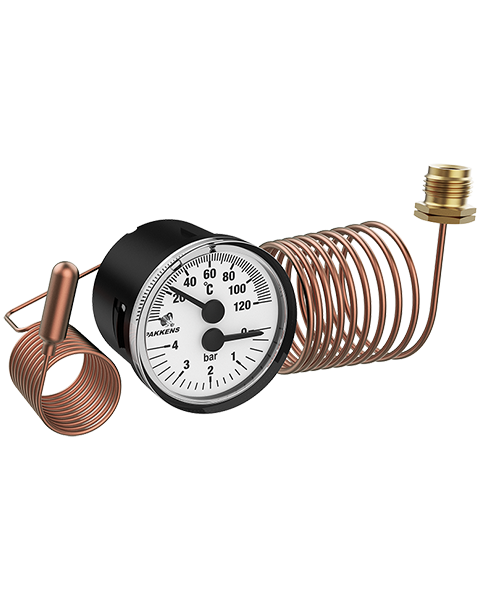

TI 040


• Heating systems to see the pressure and temperature values at the same time.
• Used where no high accuracy is needed.
• Used with gas and liquids which do not attack copper alloys.
• With its capillary tubing Thermometer’s body can be mounted away from heat source (max. 2mt)
Industry Sector: Machinery Manufacturing, Heating, ventilation, air conditioning (HVAC) and vessel manufacturers
Technical Drawings
Usage Properties OptionsShow product options
Operating Pressure (max.)
  •  Must not exceed  %75' of full scale.
Protection Rate
  • IP 41
Optimum Operating Range
  • Between 0,1 x PN and 0,75 x PN
Storage Temperature
  • -20 ... +60 °C
Accuracy Class (T)
  • CL 2,0
Accuracy Class (P)
  • CL 2,5
Constructive Properties OptionsShow product options
Mounting Type
  • Back Connection Panel Mounted
Scale Unit
  • bar
  • °C
  • mWs
  • °F
Scale Range (PN)
  • 0/4
  • 0/6
  • 0/10
  • 0/16
Scale Range (T)
  • 0/+120°C
Case
  • Plastic (ABS)
Bezel
  • Plastic
Window
  • Acrylic
Wetted Parts
  • Copper Alloy
Connection
  • G 1/4’’ B
  • 1/4" NPT
Dial
  • Plastic
Pointer
  • Plastic
Welding
  • Soldering
pressure Connection
  • Brass
Temperature Element
  • Gas Actuated
Capillary Tube Length (P)
  • 1m
  • 2m
Capillary Tube Length
  • 1m
  • 2m
