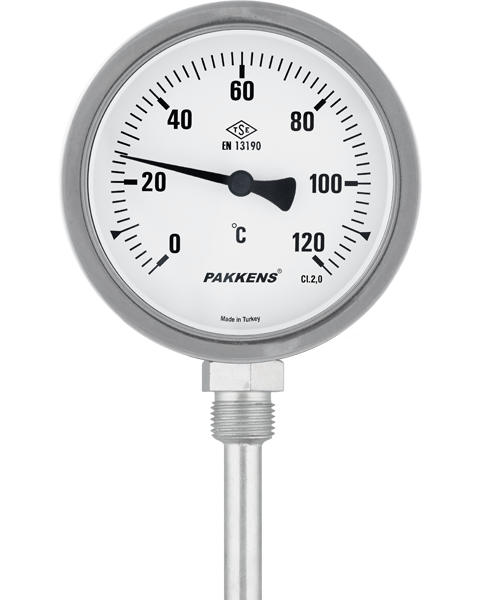

TB 100


• Bi-Metals are made of two different metal sheet layers and a spiral form is given ,as the metals expansion rates differ from each other , due to these factors it spins upwards around its axis by heat.By a transmission wire this movement it is transmitted to the pointer.
• Used where higher accuracy needed.
• Used with gas and liquids which do not attack stainless steel 316L.
• Silicon filled types are used in vibrating environments
Industry Sector: Petro-chemical plants, Machinery Manufacturing, Heating, ventilation, air conditioning (HVAC) and vessel manufacturers
Quality Certificates
TSE - Temperature Gauge Download
GOST-R - Temperature Gauge Download
ATEX - Temperature Gauges Download
Technical Drawings
Usage Properties OptionsShow product options
Conformity
  • EN 13190
  • ATEX 94/9/EC
Accuracy Class
  • CL 2.0
Protection Rate
  • IP 51
Storage Temperature
  • -40 ... +70 °C
Constructive Properties OptionsShow product options
Mounting Type
  • Bottom Connection
  • Back Connection
Scale Unit
  • °C
  • °F
Scale Range (T)
  • -30/+60°C
  • 0/+60°C
  • 0/+120°C
  • 0/+160°C
  • 0/+300°C
  • 0/+350°C
  • 0/+400°C
  • 0/+500°C
Case
  • Stainless Steel AISI-304
  • Stainless Steel AISI-316L
Bezel
  • Stainless Steel AISI-304
  • Stainless Steel AISI-316L
Window
  • Glass
  • Safety Glass
Connection
  • G 1/2’’ B
  • 1/2’’ NPT
Dial
  • Aluminum
Pointer
  • Aluminum
Temperature Element
  • Bi-metal
Bi-Metal Stem
  • Stainless Steel AISI-316
Thermowell
  • Stainless Steel AISI-316
Immersion Length
  • 100mm
  • 150mm
  • 200mm
  • 250mm
  • 300mm
  • 400mm
  • 500mm
  • 700mm
  • 1000mm
