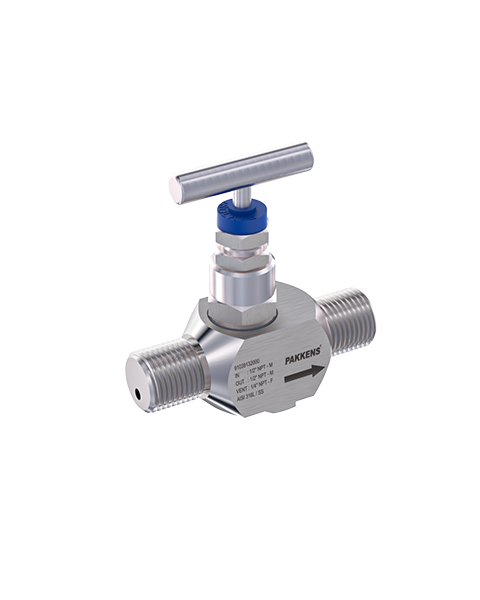

MP1032 / Single Block and Multiport Needle Valves

Single Block and Multiport Needle Valves are used for preventing and permitting the fluid flow between the process and the pressure sensing instruments, such as pressure gauges, pressure transmitters, and pressure switches, in case of necessity.

Single Block and Multiport Needle Valves contain 1 isolating valve and 1 discharge plug and are compatible with the process fluids that are not highly viscous, crystallizable, and aggressive.

The product has been designed for the applications of Petro chemistry, Chemistry, Petroleum, and Natural Gas industries. Additionally, it can also be used in the systems where high-pressure and high-temperature resistance is required.

By turning off the isolation valve, the pressure instrument can be disassembled from the system for calibration, maintenance, or renewal of the instrument.
Data Sheet
Usage Properties
Operating Pressure (max.)
  • 413 bar (6000 psi) / 38°C
Operating Temperature
  • -54°C / +210°C
Constructive Properties
Case
  • Stainless Steel AISI-316L
Discharge Connection
  • 1/4" NPT
Process Connection
  • 1/2" NPT-M
Instrument Connection
  • 1/2" NPT-M
Knob
  • Stainless Steel AISI-316L
Gasket
  • PTFE
