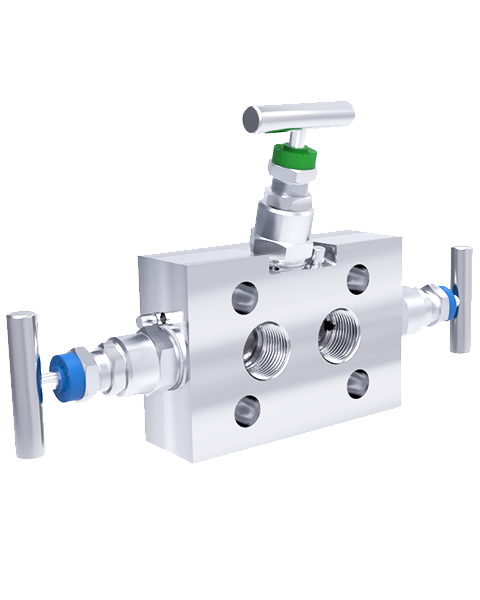

3 way Manifold

3 way Manifold


Designed for use in conjunction with differential pressure instruments and transmitters. The basic three way manifolds consists of two process isolation valves and one equalizing valve in a single compact unit.
Technical Drawings
Usage Properties OptionsShow product options
Operating Pressure (max.)
  • 6000 psi/413 bar
  • 10000 psi/698 bar
Constructive Properties OptionsShow product options
Mounting Type
  • Vertical
Case
  • Stainless Steel AISI-316L
  • Stainless Steel AISI-304
Inlet Connections
  • 1/2" NPT
  • 1/4" NPT
  • 1/4" BSPT
  • 1/4" BSPP
  • 1/2" BSPT
  • 1/2" BSPP
Outlet Connections
  • Flanged
Knob
  • Stainless Steel AISI-316L
Gasket
  • PTFE
  • Graphoil
