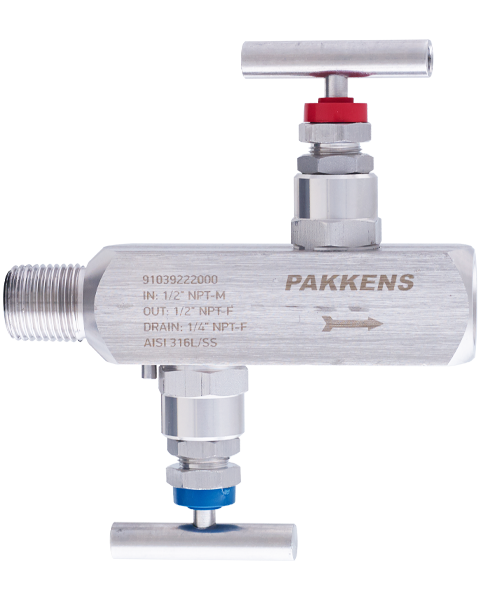

2 way Manifold

2 way Manifold


The basic valve consists of two valves in a integral unit for isolation and Drain/calibration of pressure gauges, pressure switches, pressure transmitters. Designed to reduce installation costs and improve safety performance, the consolidation of valves into one unit provides you with a combination of instrument isolation together with bleed/vent and test facilities. Closing the isolation valves and operating the bleed valve gives operators the opportunity of venting trapped pressurized fluids to an environmentally safe area. These manifolds are designed for fast and efficient installation and removal of pressure measurement instruments.
Technical Drawings
Usage Properties
Operating Pressure (max.)
  • 6000 psi/413 bar
Constructive Properties
Mounting Type
  • Vertical
Case
  • Stainless Steel AISI-316L
Knob
  • Stainless Steel AISI-316L
Inlet Connections
  • 1/2" NPT
Outlet Connections
  • 1/2" NPT
Gasket
  • PTFE
